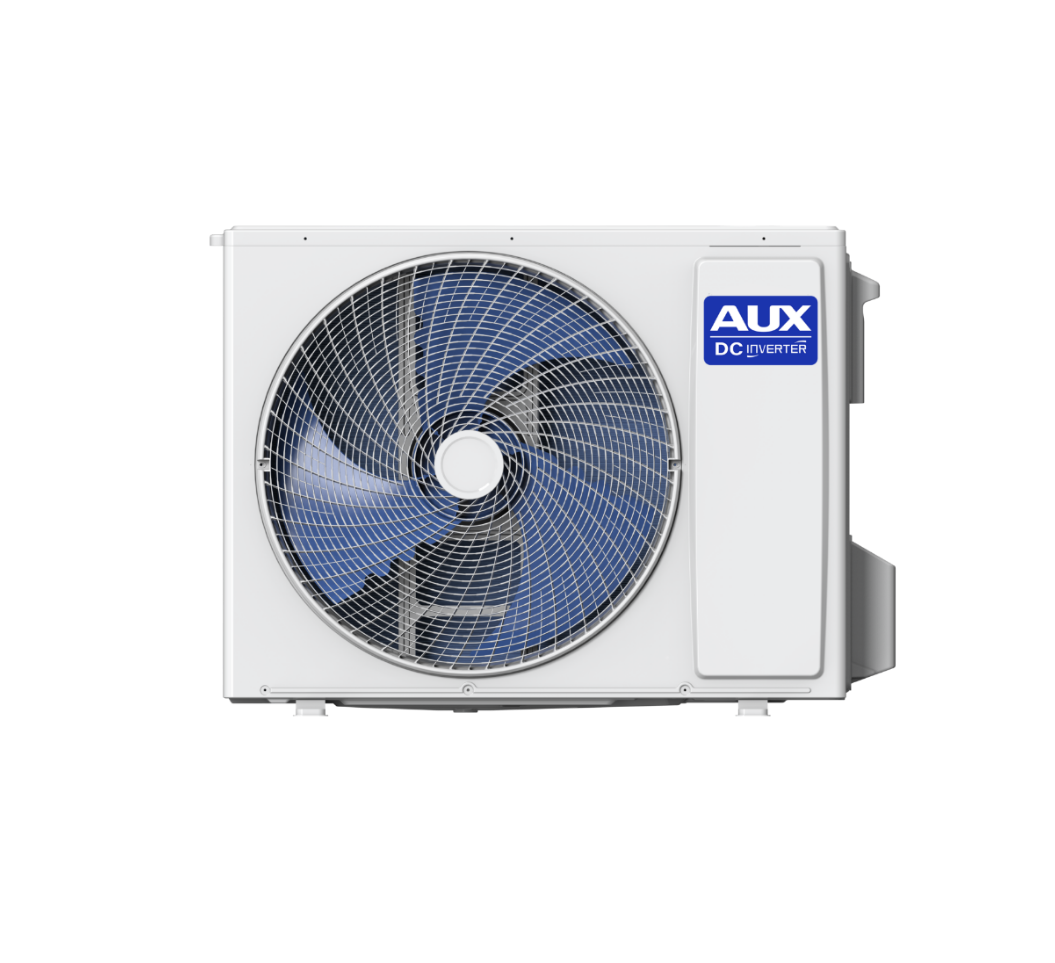

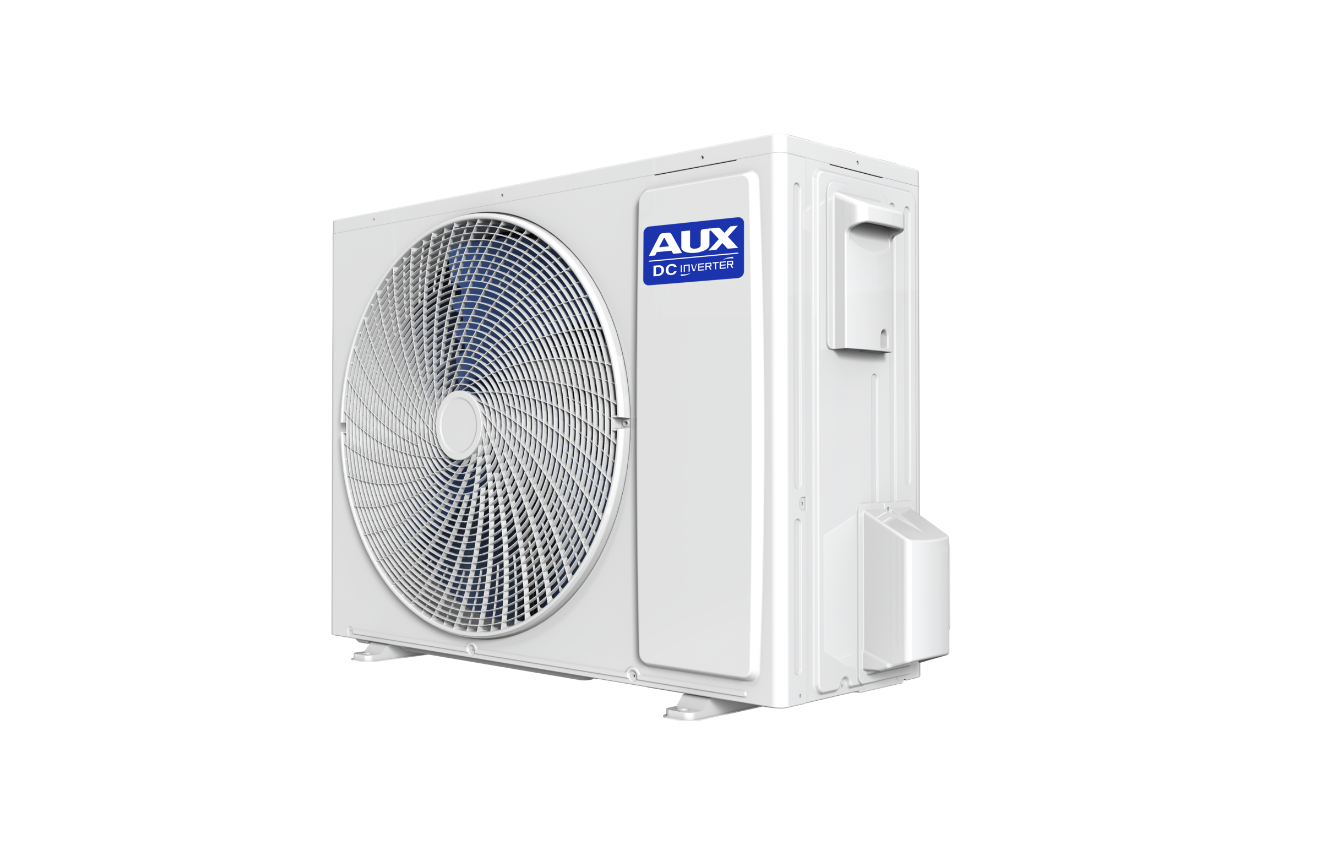

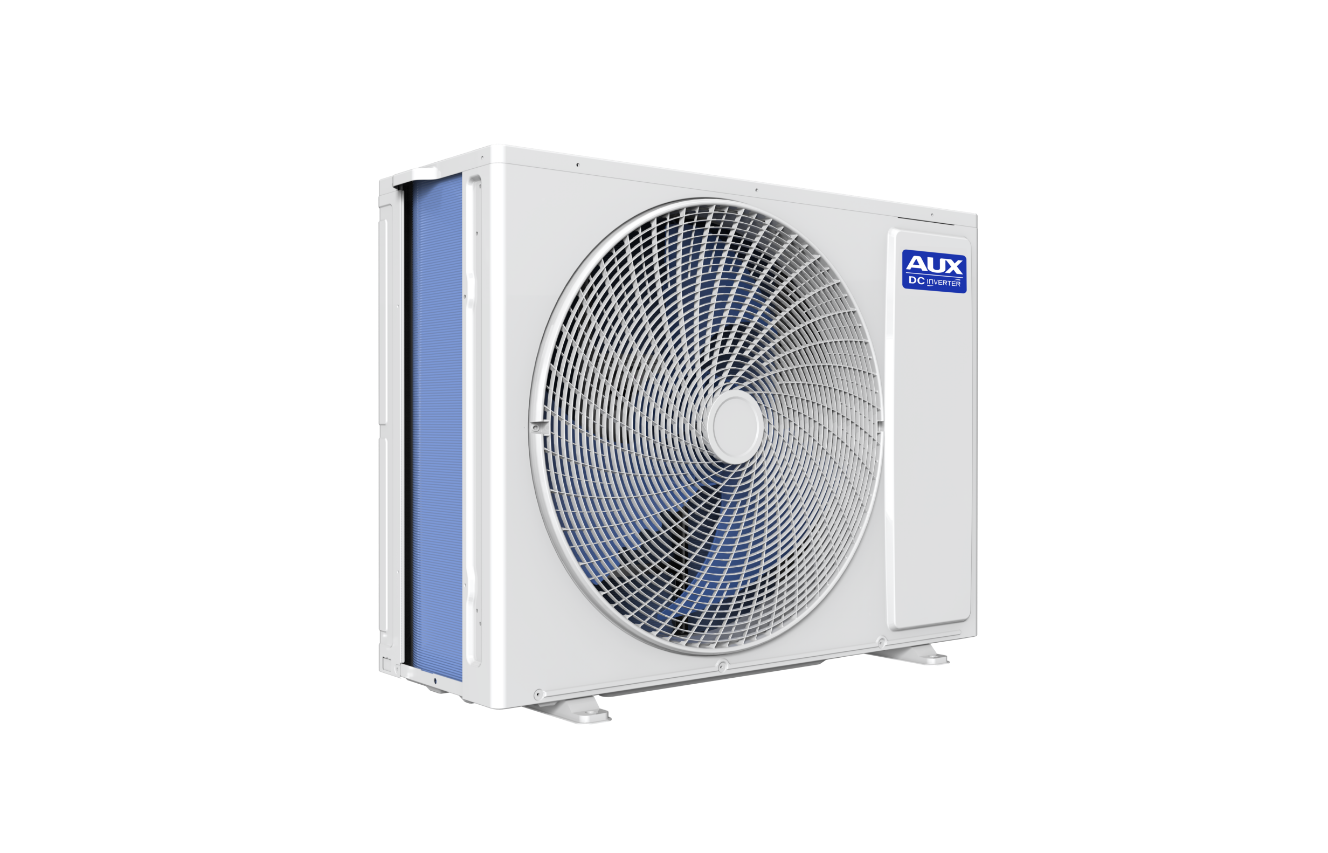

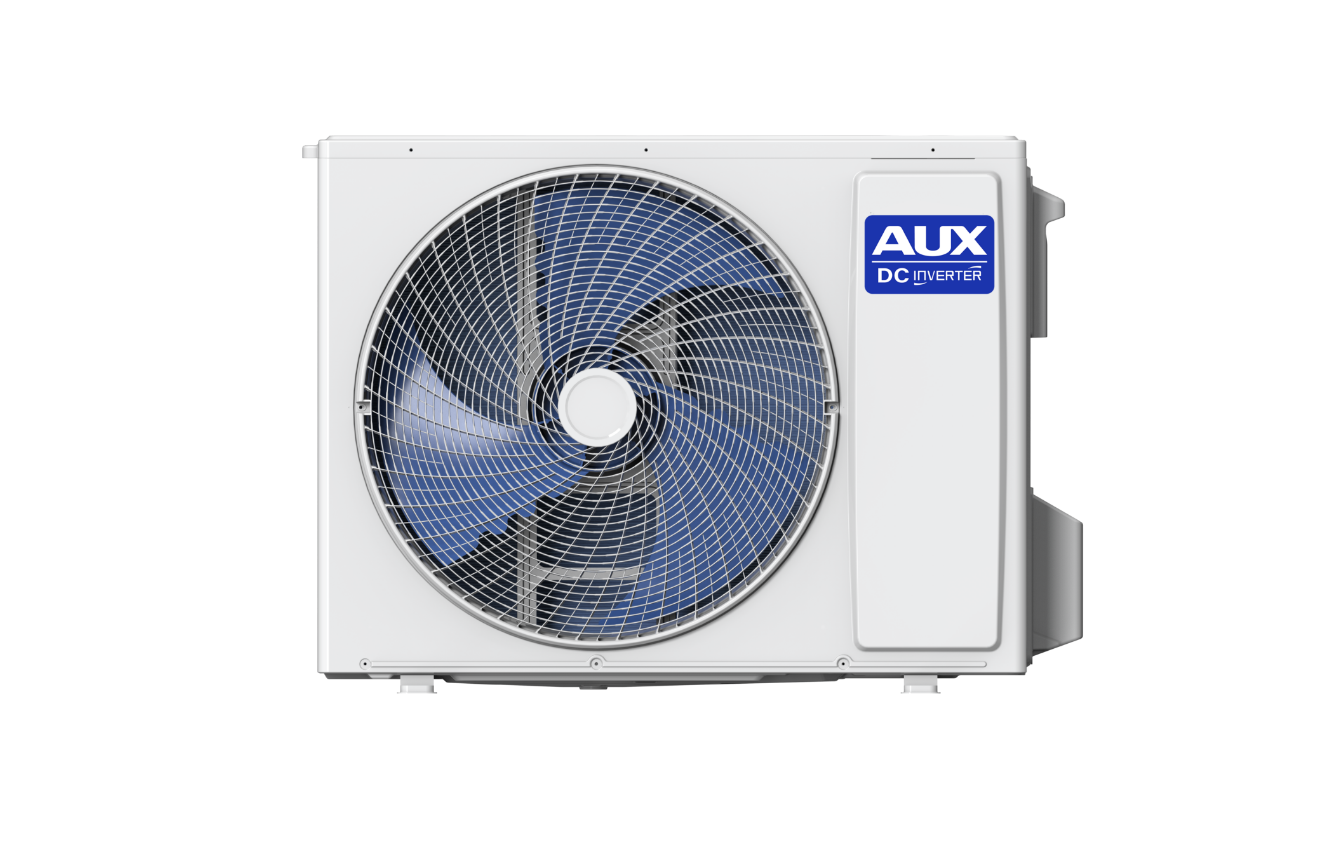

OUTDOOR UNIT A++
180° SINE WAVE CONTROL
The DC inverter compressor adopts 180 °sine wave variable speed technology for more accurate control,resulting in smoother motor operation.extended service life. and reduced noise levels
HICHLY EFFI CIENT AND ENERGY-EFFI CIENT
The outdoor unit is equipped with high-efficiency DC inverter compressor, speed-adjustable fan, electronic expansion valve and advanced 180° sine wave vector drive.meets EU A++/A+
CENTRAL CONTROL
With the control function of weekly timer,zone (or group)setting etc., the centralized controller can control 64 units with RS 485 wire connection and the central control adapter.
*AUX reserves the right to interpret the data.
Specifications
| Model | Model | Indoor | 14 | 18 | 21 | 27 | 28 | 36 | 42 |
|---|---|---|---|---|---|---|---|---|---|
| Outdoor | RXYM42M(2)-T1B | RXYM52M(2)-T1B | RXYM62M(3)-T1B | RXYM80M(3)-T1B | RXYM82M(4)-T1B | RXYM105M(4)-T1B | RXYM125M(5)-T1B | ||
| Data | SEERISCOP | W/W | 6.1/4.1 | 6.8/4.6 | 6.1/4.1 | 6.8/4.6 | 7.80/4.72 | 6.5/4.09 | 6.2/4.0 |
| 20/40/40H | unit | 114/237/316 | 114/237/316 | 90/189/189 | 90/189/189 | 44/92/96 | 44/92/96 | 44/92/96 | |
| Liquid Side | mm(inch) | 2x6.35(1/4) | 2x6.35(1/4) | 3x6.35(1/4) | 3x6.35(1/4) | 4x6.35(1/4) | 4x6.35(1/4) | 4x6.35(1/4) | |
| Net | kg | 30 | 30.5 | 41.5 | 41.5 | 59 | 63.5 | 75 | |
| Net Dimension (W*D*H) | mm | 785x300x555 | 785x300x555 | 900x360x700 | 900x360x700 | 970x395x803 | 970x395x803 | 970x395x803 | |
| System Format | 1 drive 2 | 1 drive 2 | 1 drive 3 | 1 drive 3 | 1 drive 4 | 1 drive 4 | 1 drive 5 | ||
| Power Supply | V~,Hz,Ph | 220~240,50,1 | 220-240,50,1 | 220-240,50,1 | 220-240,50,1 | 220-240,50,1 | 220-240,50,1 | 220-240,50,1 | |
| Cooling | Btu/h | 13989(6142-15388) | 18084(6824-19892) | 21154(7506-22895) | 27000(7848-29650) | 27300(8530-33440) | 36000 | 40944(9451-43332) | |
| Cooling | kW | 4.1(1.8-4.51) | 5.3(2.0-5.83) | 6.2(2.2-6.71) | 7.91(2.3-8.69) | 8.0(2.5-9.80) | 10.55(2.5~11.0) | 12(2.77-12.7) | |
| Cooling Power input | W | 1240(198-2100) | 1560(280-2300) | 1920(350-2800) | 2390(560-3400) | 2000(270-3300) | 3270(680-4930) | 3710(750-5450) | |
| Energy Rate | A++/A+ | A++/A++ | A++/A+ | A++/A++ | A++/A++ | A++/A+ | A++/A+ | ||
| Gas Side | mm(inch) | 2x9.52(3/8) | 2x9.52(3/8) | 3x9.52(3/8) | 3x9.52(3/8) | 4x9.52(3/8) | 4x9.52(3/8) | 4x9.52(3/8) | |
| Gross | kg | 32.5 | 33 | 45 | 45 | 64 | 67.5 | 79 | |
| Packing Dimension(W*D*H) | mm | 900x380x615 | 900x380x615 | 1015x415x755 | 1015x415x755 | 1105x495x895 | 1105x495x895 | 1105x495x895 | |
| Heating | Btu/h | 15354(6995-18015) | 19107(7541-21017) | 22519(8155-24771) | 28000(8359-30776) | 32070(9110-34460) | 37500 | 44356(10100-44800) | |
| Heating Power input | W | 1150(198-2100) | 1440(280-2300) | 1780(350-2800) | 2160(560-3400) | 2050(340-3100) | 2965(530-3850) | 3500(600~4350) | |
| EER/COP | W/W | 3.31/3.91 | 3.4/3.9 | 3.23/3.71 | 3.3/3.8 | 4.01/4.61 | 3.23/3.71 | 3.23/3.71 | |
| Max, length for all rooms | m | 40 | 40 | 60 | 60 | 80 | 80 | 80 | |
| Heating | kW | 4.5(2.05-5.28) | 5.6(2.21-6.16) | 6.6(2.39-7.26) | 8.21(2.45-9.02) | 9.4(2.67~10.14)1 | 1.00(2.67-11.2) | 13(2.96~13.1) | |
| Max. length for one lDU | m | 25 | 25 | 30 | 30 | 35 | 35 | 35 | |
| Air Flow Volume | m³/h | 2600 | 2600 | 4100 | 4100 | 4200 | 4000 | 4200 | |
| Sound Pressure Noise Level | dB(A) | 53 | 54 | 56 | 57 | 59 | 60 | 61 | |
| Max.height difference between lDU and OU | m | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| Sound Power Noise Level | dB(A) | 65 | 65 | 66 | 67 | 67 | 70 | 70 | |
| Max.height difference between IDUs | m | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| Ambient Temp (Cooling/Heating) | ℃ | -10~52℃/-15~24℃ | -15~52℃/-25~24℃ | -10~52℃/-15~24℃ | -15~52℃/-25~24℃ | -15~52℃/-25~24℃ | -15~52℃/-25~24℃ | -10~52℃/-15~24℃ |
