No.3 in globalSplit ACs (2018-2024)
SELLING POINTS
HIGH SPACE AIR SUPPLY
HIGH SPACE AIR SUPPLY
Meet the air cooling requirements for tall spaces like villas, shops, offices, etc.
LOW NOISE
LOW NOISE
Minimum Noise at Just 33 dB Enabled by a flat-connected chassis and motor pan reducing airflow impact noise
360° AIR SUPPLY
360° AIR SUPPLY
Distribute cool air uniformly via 8 air outlets to provide 360° air supply for all-rounded cooling comfort
DIGITAL DISPLAY
DIGITAL DISPLAY
Shows temperature, error codes and operating status directly from thepanel.Temp precise to 0.5°C*.
Product Parameters

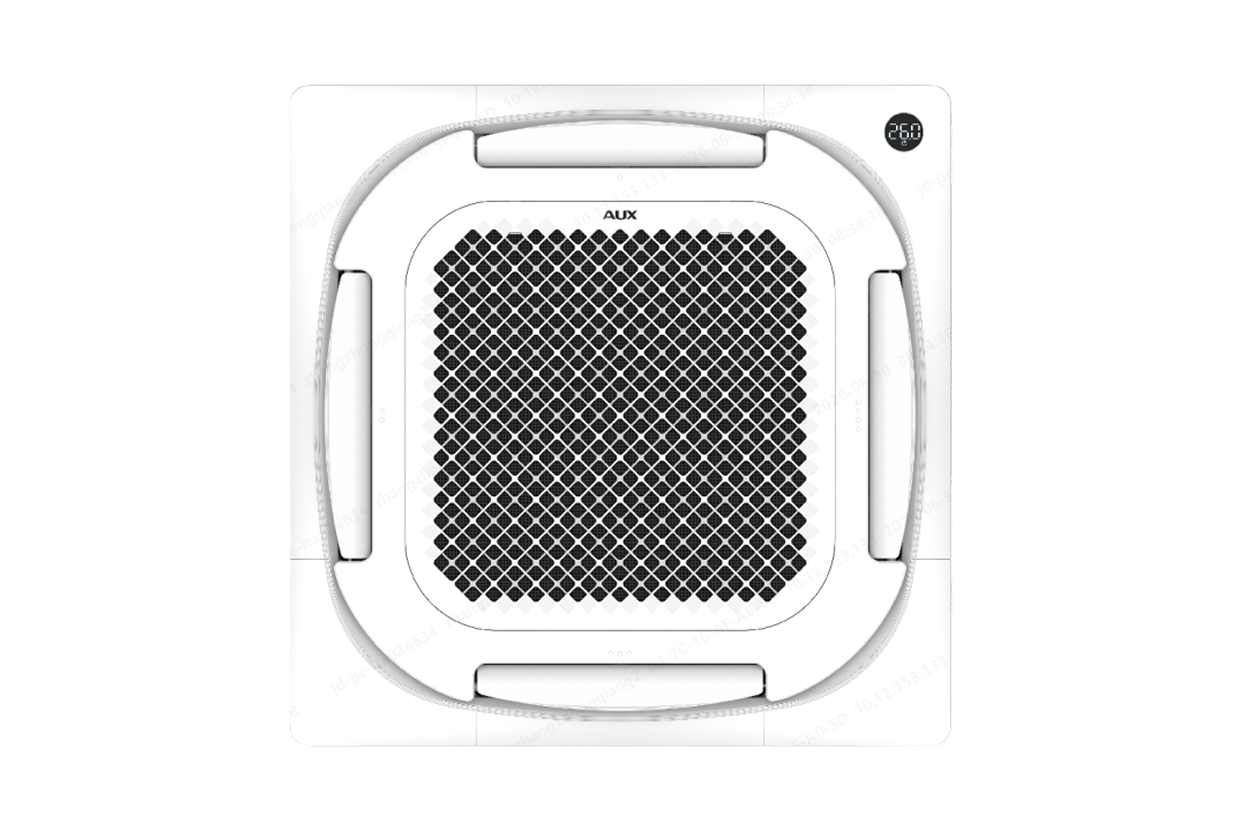

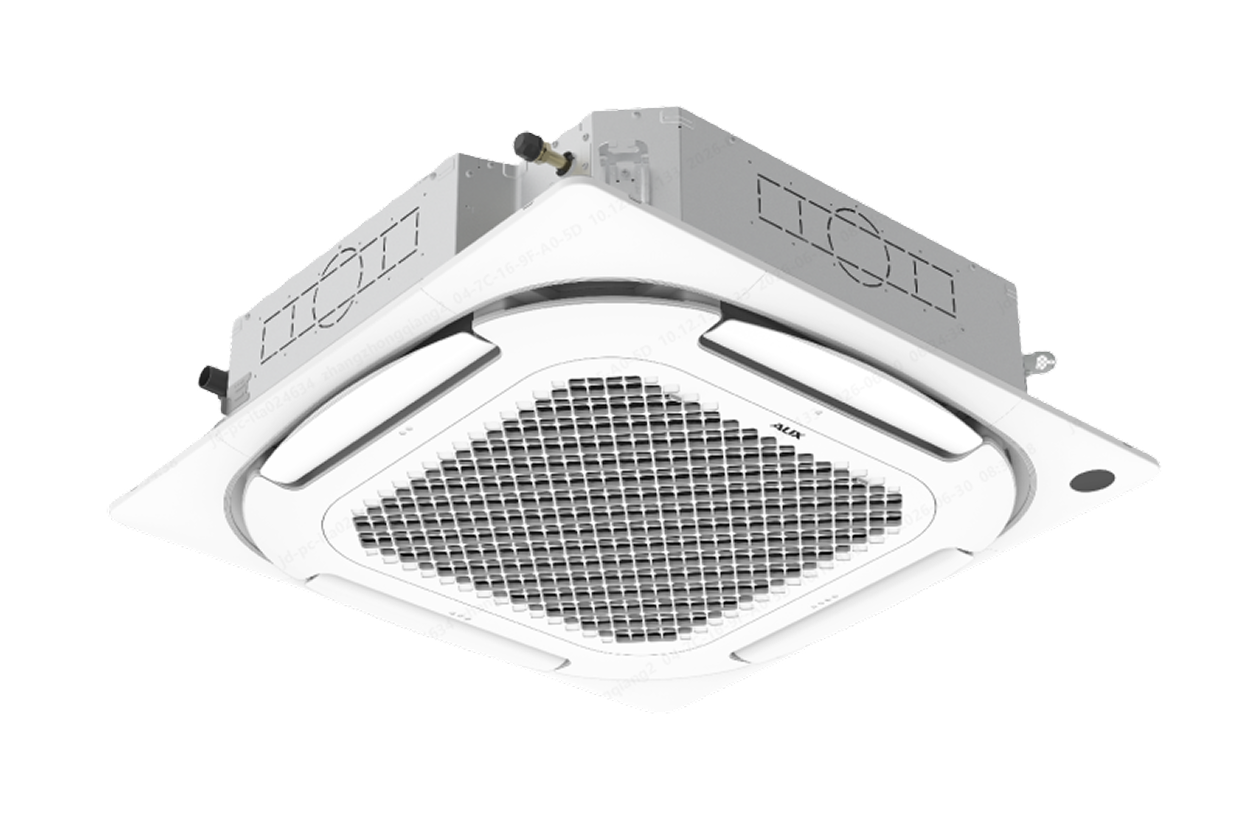

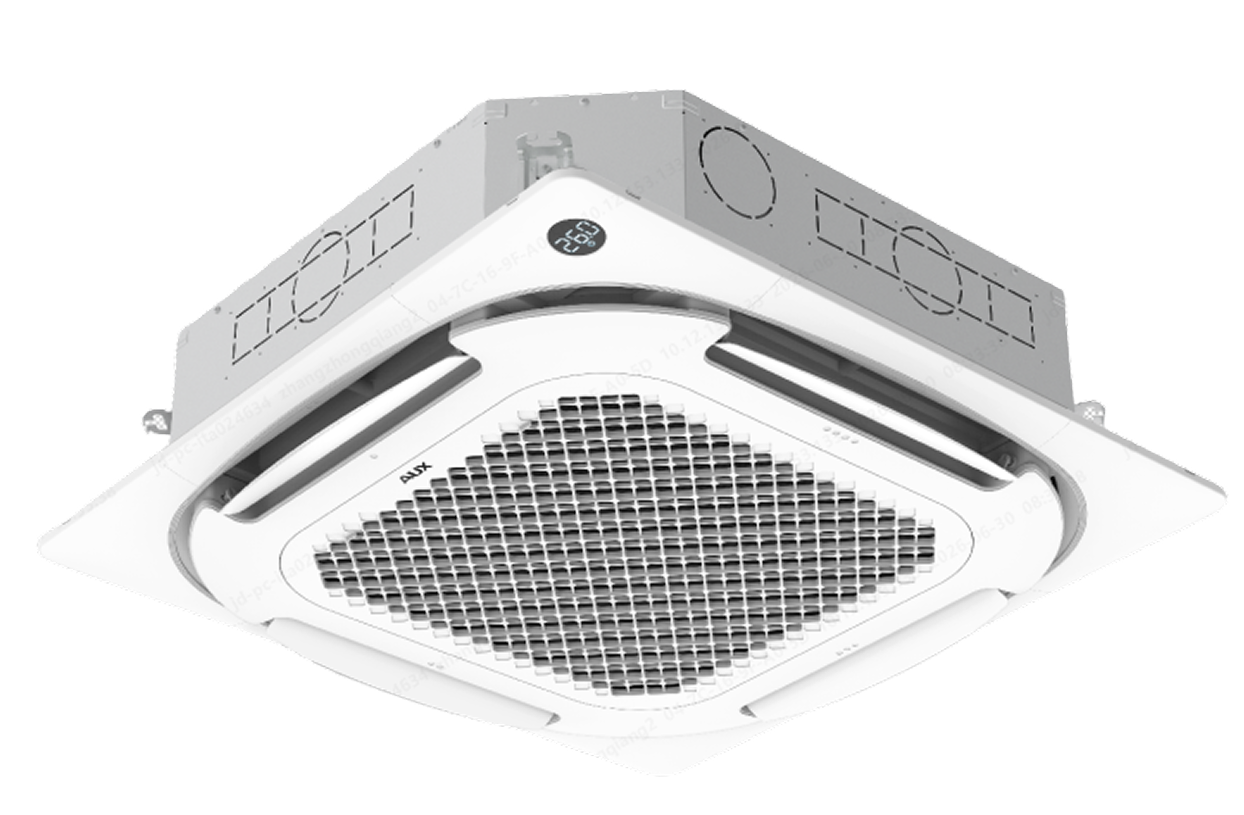

Q Cassette
| Model | Indoor Unit | ALCA-C18/4DR3A2B | ALCA-C24/4DR3A2B | ALCA-C30/4DR3A2B | ALCA-C36/4DR3QAB | ALCA-C48/5DR3QAB | ALCA-C60/5DR3QAB | ||
| Outdoor Unit | AL-C18/4DR3A2(U) | AL-C24/4DR3A2(U) | AL-C30/4DR3A2(U) | AL-C36/4DR3Q(U) | AL-C48/5DR3Q(U) | AL-C60/5DR3Q(U) | |||
| Capacity | Cooling | Btu/h | 18100 | 24200 | 30000 | 36000 | 48000 | 55000 | |
| kW | 5.30(1.58-5.59) | 7.10(2.16-7.20) | 8.80(2.95-9.45) | 10.55(2.95-10.83) | 14.07(4.76-14.20) | 16.12(4.80-16.80) | |||
| Electric Data | Rated Cooling Power Input | kW | 1.60(0.45-1.80) | 2.10(0.45-2.60) | 2.75(0.56-3.27) | 3.50(0.56-3.61) | 5.80(1.21-6.50) | 5.75(1.38-6.80) | |
| Rated Cooling Power Input | A | 7.50(2.18-8.70) | 11.00(1.96-11.46) | 14.00(2.44-14.50) | 15.50(4.65-16.92) | 9.50(2.50-10.50) | 10.50(2.85-11.50) | ||
| Performance | EER | W/W | 3.31 | 3.38 | 3.20 | 3.01 | 2.43 | 2.80 | |
| CSPF | W/W | 5.10 | 5.10 | 4.81 | / | / | / | ||
| Indoor Unit | Power Supply | V~,Hz,Ph | 220-240V~,50Hz,1 | 220-240V~,50Hz,1 | 220-240V~,50Hz,1 | 220-240V~,50Hz,1 | 220-240V~,50Hz,1 | 220-240V~,50Hz,1 | |
| Indoor Airflow (SH/Hi/Mi/Lo) | m³/h | 1250/1050/900/700 | 1500/1200/1000/800 | 1850/1650/1500/1300 | 1900/1600/1300/1050 | 2200/1700/1400/1150 | 2200/1700/1400/1150 | ||
| Noise Level(SH/Hi/Mi/Lo) | dB(A) | 44/39/36/33 | 46/42/39/36 | 50/47/45/43 | 48/45/42 | 49/46/43 | 49/46/43 | ||
| Dimension (WxDxH) | Net Body | mm | 840x840x205 | 840x840x245 | 840x840x245 | 840x840x245 | 840x840x288 | 840x840x288 | |
| Net Panel | mm | 950x950x53 | 950x950x53 | 950x950x53 | 950x950x53 | 950x950x53 | 950x950x53 | ||
| Weight | Net Body | Kg | 18.5 | 21 | 21 | 21 | 23 | 23 | |
| Net Panel | Kg | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | ||

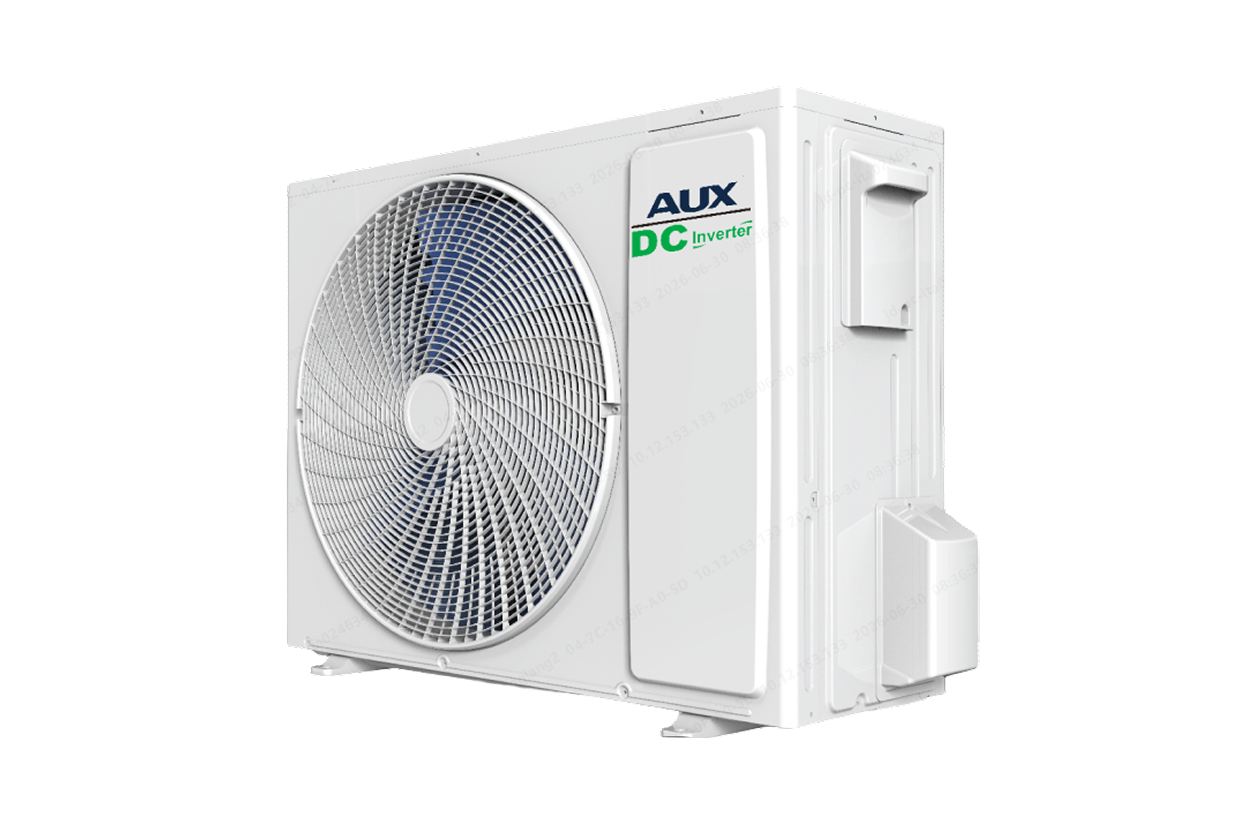

| Outdoor Unit | Power Supply | V~,Hz,Ph | 220-240V~,50Hz,1 | 220-240V~,50Hz,1 | 220-240V~,50Hz,1 | 220-240V~,50Hz,1 | 380-415V~,50Hz,3 | 380-415V~,50Hz,3 | |
| Air Flow Volume | m³/h | 2300 | 3300 | 3500 | 3500 | 3850 | 7000 | ||
| Noise Level | dB(A) | 50 | 51 | 53 | 55 | 56 | 56 | ||
| Net Dimension (WxDxH) | mm | 705x279x530 | 825x335x655 | 900x360x700 | 900x360x700 | 970x395x803 | 940x373x1320 | ||
| Net Weight | Kg | 22 | 31 | 39 | 42 | 60 | 77 | ||
| Refrigerant Pipe | Liquid Size | inch | 1/4" | 1/4" | 3/8" | 3/8" | 3/8" | 3/8" | |
| Gas Size | inch | 1/2" | 1/2" | 5/8" | 5/8" | 5/8" | 5/8" | ||
