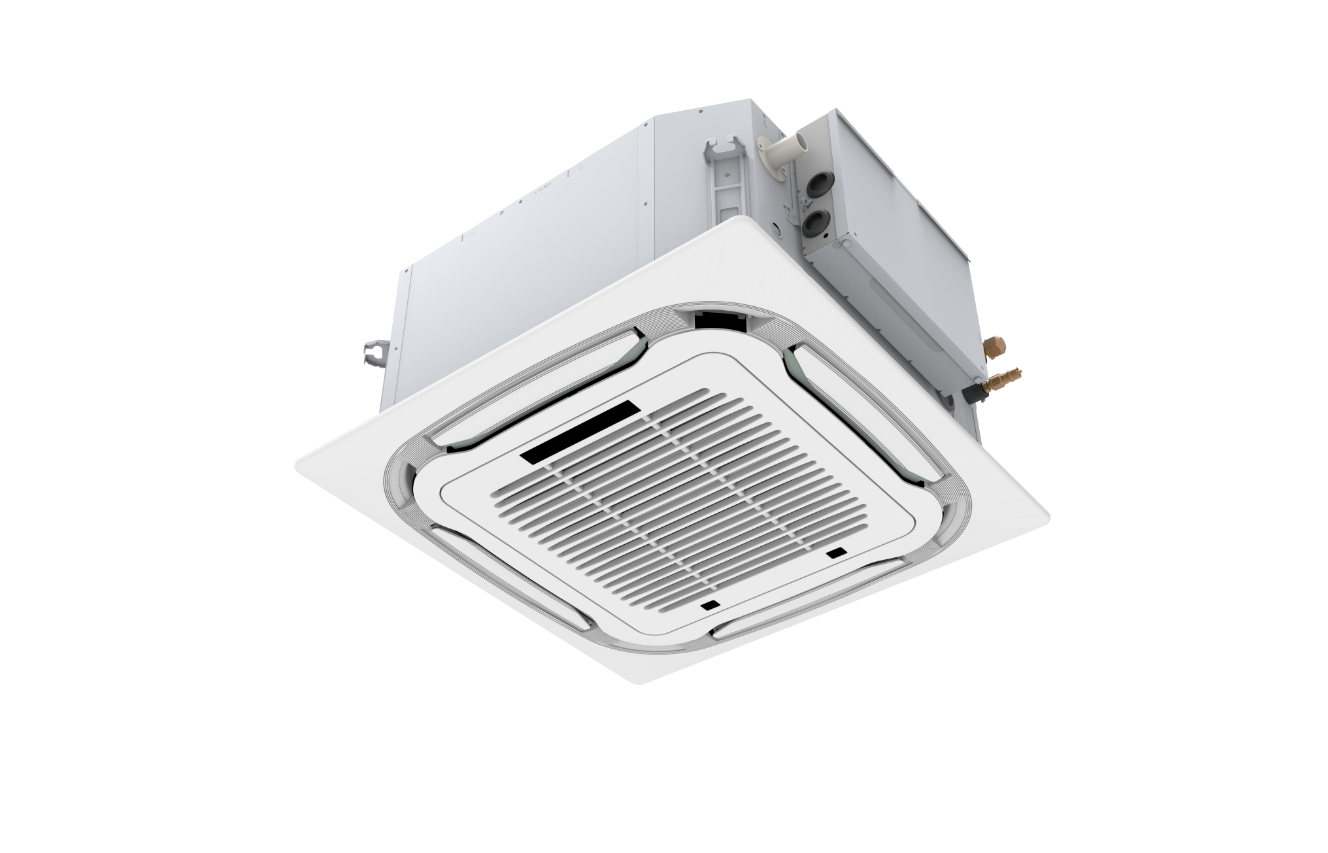

CASSETTE COMPACT
FRESH AIR INLET
Fresh air inlet design, fresh air can be intro-duced to ensure fresh air in the room
FLEXIBLE INSTALLATION
Two return air modes are selected (back return air and down return air), Easy to change
DRY CONTACT FUNCTION
Optional dry node function, when the unit senses the window opening or sensing the fire, the unit will au-tomatically shut down
*AUX reserves the right to interpret the data.
Product Features
_1760703721005_1763038733567.png)
EXTERNAL CONTROL BOX
External contral box, no need to disassemble the unit, convenient mainitnance

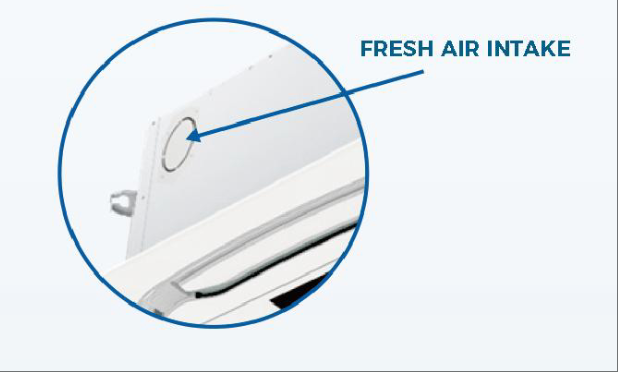

FRESH AIR INTAKE
Fresh air makes indoor air healthy and comfortale.

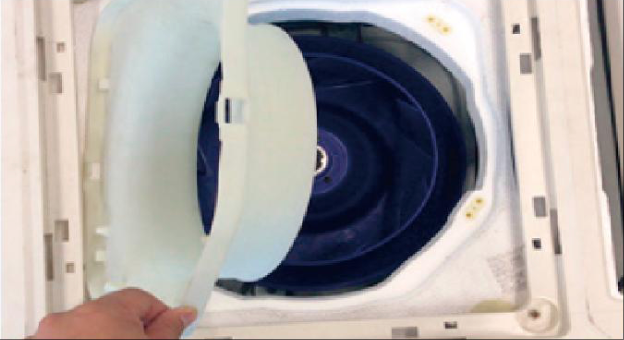

EASY TO REMOVE WIND BLADES
Thanks to the external design of the electronic control box, the fan blades can be easily re-moved after removing the air guide ring,making it easy for after-gales maintenance
Specifications
| Model | Model | Indoor | FDCA35YA-B/FDCA35YB-B | FDCA52YA-B/FDCA52YB-B |
|---|---|---|---|---|
| Outdoor | RXYL35M-T1B | RXYL52M-T1B | ||
| Performance data | Output power-COOLING | kW | 3.52(1.35~4.40) | 5.28(1.53~5.60) |
| Output power-HEATING | kW | 3.81(1.24~5.30) | 5.60(1.40~6.20) | |
| Absorbed power-COOLING | kW | 1.03(0.26~1.60) | 1.55(0.47~2.30) | |
| Absorbed power-HEATING | kW | 1.02(0.19~1.51) | 1.51(0.46~2.25) | |
| Energy class | w/W | 3.42/3.74 | 3.41/3.71 | |
| w/W | 3.74 | 3.71 | ||
| COOLING Pdesign | kW | 3.52 | 5.3 | |
| HEATING Pdesign | kW | 2.7 | 4.5 | |
| Energy class -AVERAGE | / | 6.3(A++) | 6.2(A++) | |
| / | 4.1(A+) | 4.1(A+) | ||
| Annual Energy Consumption-COOLING | kWh/a | 196 | 299 | |
| Energy class -WARM | 5.2(A+++) | 5.1(A+++) | ||
| Annual Energy Consumption-HEATING | kWh/a | 922 | 1575 | |
| Indoor Unit | Power supply | Ph/V/Hz | 220-240V~,50Hz,1 | 220-240V~,50Hz,1 |
| Treated air volume | m3/h | 720/660/600/530 | 800/740/680/600 | |
| High soundpower | dB | 55 | 58 | |
| Sound pressure | dB(A) | 43/41/38/35 | 46/44/41/37 | |
| Net dimensions | mm | 570x570x260 | 570x570x260 | |
| Packaging dimensions | mm | 720x650x290 | 720x650x290 | |
| Net/grossweight | kg | 14.5/17 | 15/17.5 | |
| Panel | / | MB13/W-Y1 | MB13/W-Y1 | |
| Panel Net dimensions | mm | 650x650x45 | 650x650x45 | |
| Panel Packaging dimensions | mm | 710x710x80 | 710x710x80 | |
| PanelNet/grossweight | / | 2.4/3.8 | 2.4/3.8 | |
| Outdoor Unit | Power supply | Ph/V/Hz | 220-240V~,50Hz,1 | 220-240V~,50Hz,1 |
| Power cable | Nxmm2 | 3*1.5 | 3*1.5 | |
| Interconnection cable | Nxmm2 | 4*1.0 | 4*1.0 | |
| Sound power | dB | 65 | 66 | |
| Sound pressure | dB(A) | 53 | 54 | |
| Running current cooling/heating | A | 9 | 12 | |
| Net dimensions | mm | 785x300x555 | 785x300x555 | |
| Packaging dimensions | mm | 900x380x615 | 900x380x615 | |
| Net/gross weight | kg | 24.5/27 | 28.5/31 | |
| Compressor type | / | ROTARY | ROTARY | |
| Installation data | Refrigerant | / | R32 | R32 |
| Liquid pipe | mm(inch) | 6.35(1/4) | 6.35(1/4) | |
| Gas pipe | mm(inch) | 9.52(3/8) | 12.7(1/2) | |
| Standard pipe length without refrigerant charge | m | 5 | 5 | |
| Maximum pipe length | m | 25 | 30 | |
| Maximum lU-QUelevation | m | 15 | 20 | |
| Refrigerant charge in the factory | kg | 0.75 | 1.10 | |
| Refrigerant charge in the factory | TC02eq | 0.51 | 0.74 | |
| Additional ref,charge over std length | g/m | 30 | 30 | |
| Outdoor operating limits-COOLING | ℃ | -20~52 | -20~52 | |
| Outdoor operating limits-HEATING | ℃ | -20~24 | -20~24 |
