QG

R32 DC INVERTER COMPRESSOR

Delivers superior cooling with exceptional energy efficiency and keeping environment impact in mind.
60℃ OPERATION

Maintains near-full cooling capacity even at 46℃ and operates flawlessly up to 60℃.

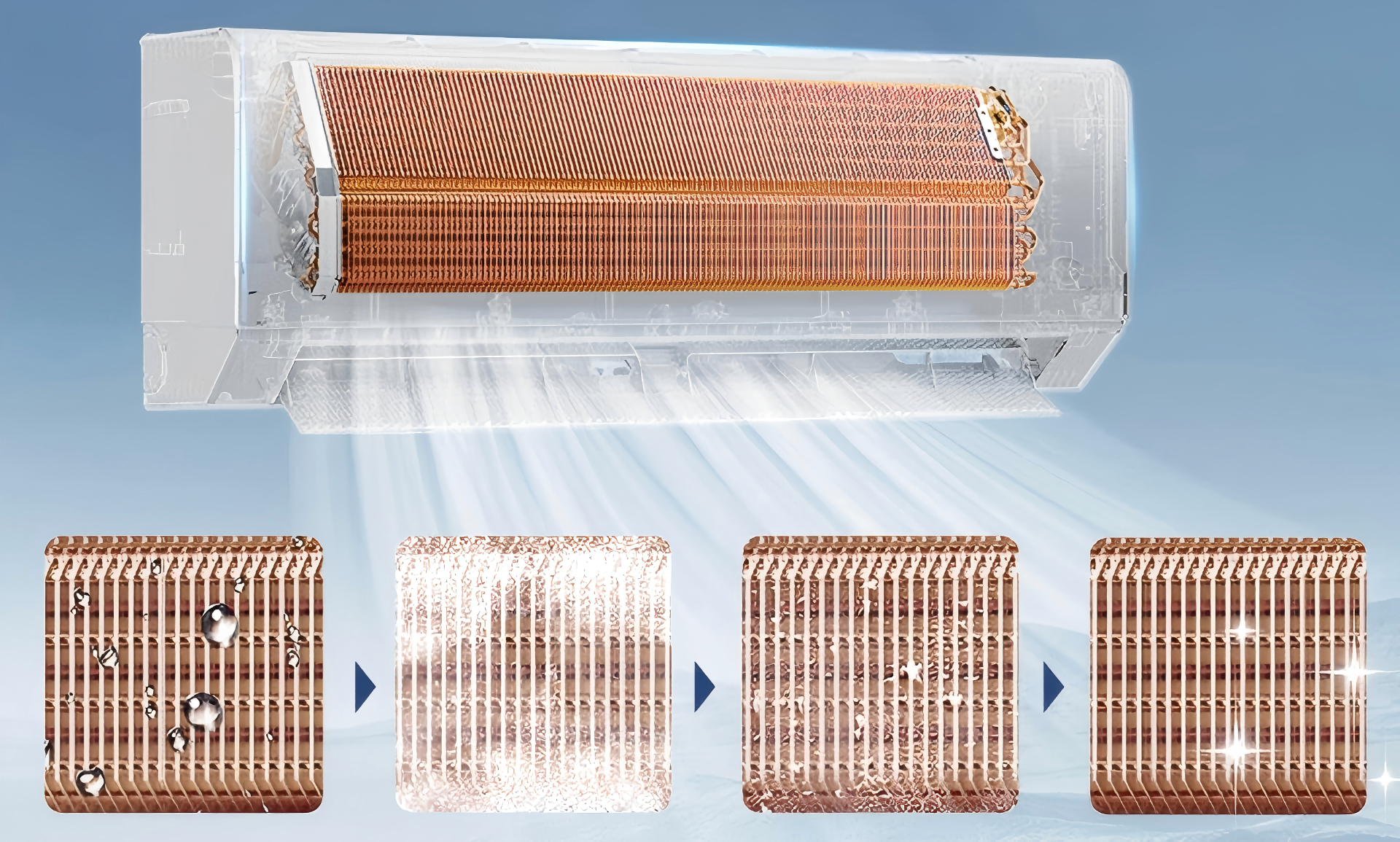

SELF CLEANING

Completely clean the evaporator area, ensuring that all the airflow discharged is clean and healthy.

Find the nearest dealer Find the nearest dealer

In store stocks availability are subject to respective retailers.

GOLDEN FIN

Anti-corrosion for long-lasting durability.

FAST COOLING

Quick chill with high-frequency compression.

SELF CLEANING

Completely clean the evaporator area, ensuring that the airflow discharged is clean and healthy.

60℃ OPERATION

Maintains near-full cooling capacity even at 46℃ and operates flawlessly up to 60℃.

4D WIND

Airflows in all directions for full coverage with 2 Modes.

PCB REMOVABLE

Independent structure design, so it's convenient for us to maintain by screwing off one screws to remove it.

Specifications

Product Model			ATW12A2D1-1AE	ATW18A4D1-1AE	ATW24A4D1-1AE
Indoor			ATW12A2D1-1AE	ATW18A4D1-1AE	ATW24A4D1-1AE
Outdoor			AT12A2D1-1AE	AT18A4D1-1AE	AT24A4D1-1AE
Power Supply		V-,Hz,Ph	208-230V-/1/50Hz	208-230V-/1/50Hz	208-230V-/1/50Hz
Capacity	Cooling(T1)	Btu/h	12300	17401	22000
		W	3604	5100	6450
	Cooling Range(T1)	Btu/h	2729-14300	4456-19107	4456-22519
		W	800-4200	1300-5600	1300-6600
	Cooling(T3)	Btu/h	11600	15100	18590
		W	3450	4425	5450
Electric Data	Rated Cooling Power Input(T1)	W	970	1520	1520
	Rated Cooling Current(T1)	A	4.5	7	7
	Rated Cooling Power Input(T3)	W	1300	1820	2224
	Rated Cooling Current(T3)	A	6	7.5	9.3
Performance	EER(T1)	(Btu/h) / W	12.68	11.45	12.44
		W/W	3.72	3.36	3.64
	EER(T3)	(Btu/h)/W	9.04	8.3	8.3
		W/W	2.65	2.43	2.45
Indoor Unit	Indoor Air Flow	m³/h	650	950	1250
	Noise Level	dB(A)	42	49	49
	Net Dimension (wDH)	mm	816295200	960315222	1089328227
	Net Weight	Kg	8.5	10.5	12.5
Outdoor Unit	Net Dimension (WDH)	mm	705279530	785300555	830655315
	Net Weight	Kg	23	26	30
	Refrigerant	Type	R32	R32	R32
Refrigerant	Liquid Size	mm(inch)	6.4(1/4)	6.4(1/4)	6.4(1/4)
	Gas Size	mm(inch)	9.52(3/8)	12.70(1/2)	15.88(5/8)
Outside Operating Temp. Range		℃	5-60	5-60	5-60
